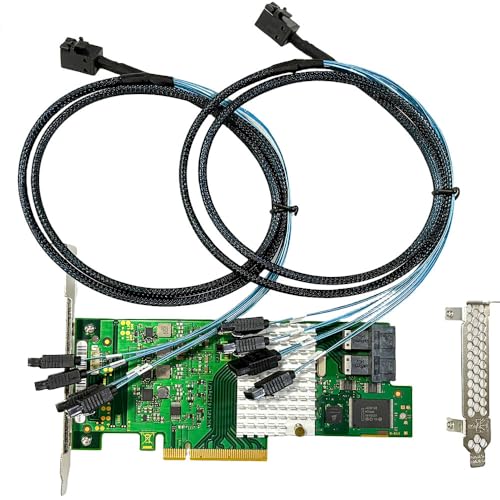

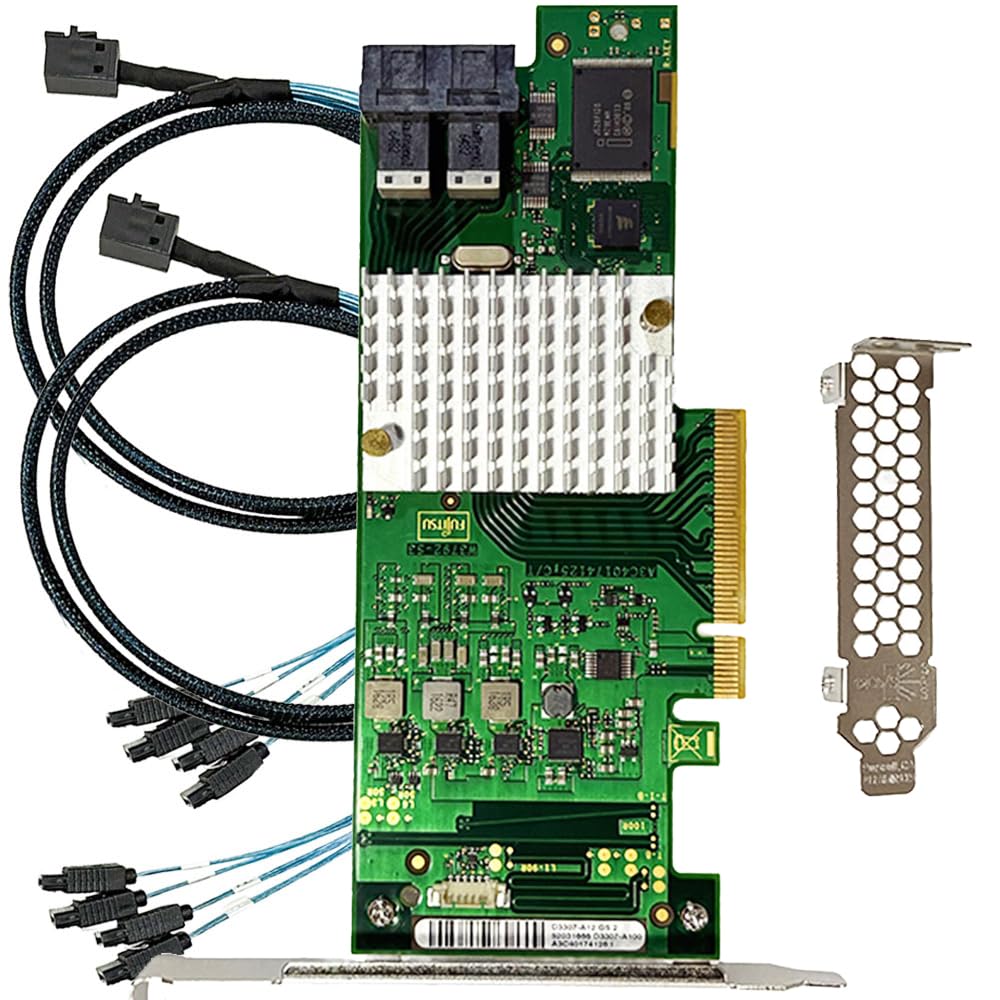

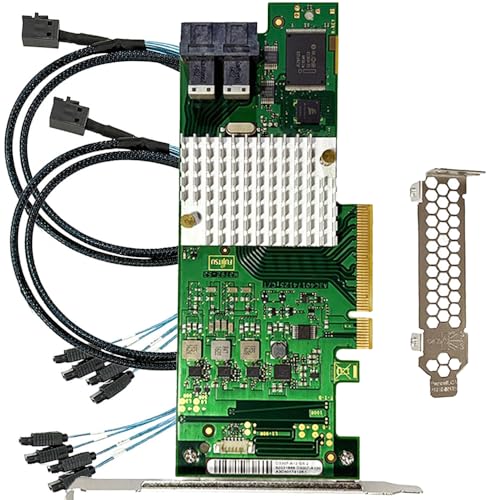

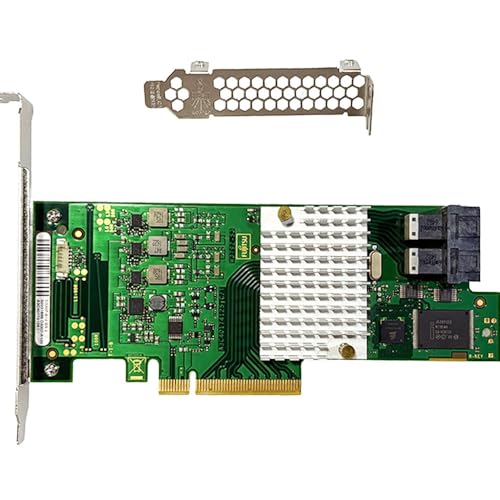

SAS HBA Card Compatible with 9211-8i & LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-Port 12Gbps PCIe 3.0 x8, SAS Expander Support, HBA Controller with 2X SFF-8643 to 4X SATA Cables for ZFS TrueNAS

$71.88

  • Compatible with: LSI 9300-8i & 9211-8i; Controller: Broadcom/LSI SAS3008 (12Gb/s SAS3, 8-port)
  • Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: up to 12Gbps SAS, SATA 6Gbps
  • Host Interface: PCIe 3.0 x8; Internal Connectors: 2× Mini-SAS HD SFF-8643. –Direct attach up to 8 drives, and expand via external SAS Expander for large arrays
  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi home-lab & NAS storage
  • Packing List: HBA Card: 1; SFF-8643 to 4× SATA Cables: 2. Cables in box are for SATA drives. –They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to SFF-8482 cables (sold separately) or our matched HBA + cable kit
1 Item sold in last week
Compare
Add to wishlist
2 People watching this product now!
Categories: , ,
Description

Product description

Compatible with: LSI 9300-8i; Controller: Broadcom/LSI SAS3008

  • Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: up to 12Gbps SAS, SATA 6Gbps

.

  • Host Interface: PCIe 3.0 x8; Internal Connectors: 2× Mini-SAS HD SFF-8643. Direct attach up to 8 drives, and expand via external SAS Expander for large arrays

.

  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi home-lab & NAS storage

.

2x SFF-8643 Internal, 8-Port 12Gbps PCIe 3.0 x8

Packing List: HBA Card: 1; SFF-8643 to 4× SATA Cables

–Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to SFF-8482 cables (sold separately) or our matched HBA + cable kit

  • This HBA is built on the Broadcom/LSI SAS3008 controller (SAS3 12Gb/s) and is compatible with LSI 9300-8i for homelab and NAS storage. It is flashed to HBA IT Mode (Non-RAID) for clean passthrough—ideal for ZFS and JBOD workflows.
  • Host interface is PCIe 3.0 x8, with 2× internal Mini-SAS HD (SFF-8643) connectors providing 8 internal ports. Supports up to 12Gb/s SAS and 6Gbps SATA link rates, and you can scale larger arrays via a SAS Expander/backplane as needed. Included in the box: 1× HBA card and 2× SFF-8643 to 4× SATA breakout cables (8 SATA ends total).
